A Practical Guide to Checking the Proxy and the Firewall

When an application suddenly can't connect, your first instinct should be to check the proxy and the firewall. It’s a classic networking whodunit. A proxy server will usually give you a specific clue, like an authentication error, while a firewall is notorious for silently dropping traffic, leaving you with a frustrating timeout. That initial symptom is your best lead.

Diagnosing Network Connection Blocks

So, your application has lost its ability to communicate and you're feeling stuck. More often than not, the problem traces back to one of two network gatekeepers: a misconfigured proxy server or an overzealous firewall. Figuring out which one is the culprit comes down to understanding their distinct behaviours.

Think of a proxy server as a receptionist at an exclusive club. If your credentials aren't right, it will actively turn you away with a clear message, like a 407 Proxy Authentication Required error. You know exactly what the problem is.

A firewall, on the other hand, is more like a silent, invisible barrier. If you're not allowed through a specific door (or port), it often just ignores you. Your connection request hangs in limbo until it eventually times out, offering no explanation. Many of these unexpected blocks can stem from a simple security misconfiguration.

Differentiating the Symptoms

The error message you get—or the lack of one—is the biggest clue. Before you start running a battery of complex commands, just take a moment to look at the symptoms.

Here’s a quick way to form an early hypothesis.

This table should help you quickly narrow down the possibilities. If you see a proxy-specific error, your troubleshooting path is clear. If you’re just getting timeouts, it’s time to start poking at the firewall.

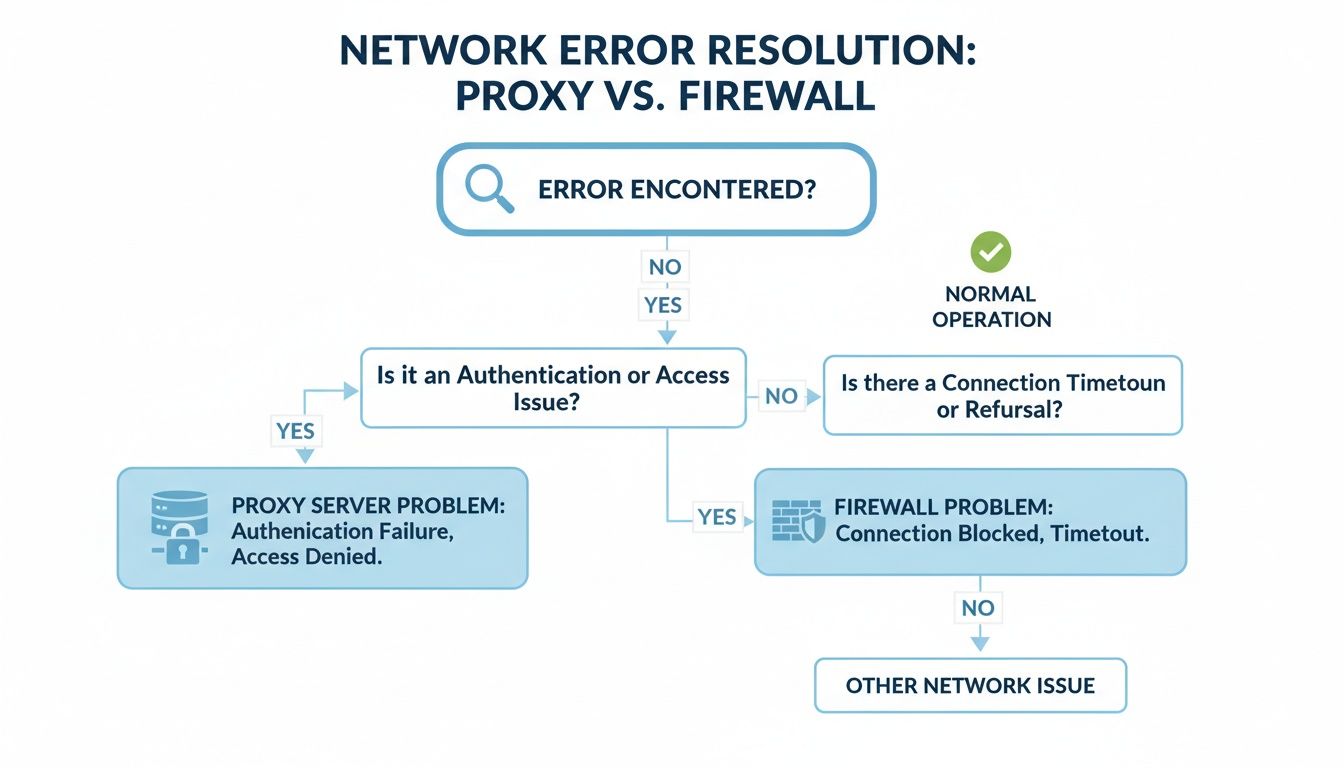

This decision tree gives you a visual for that initial diagnostic path.

As the chart shows, authentication errors point straight to the proxy, while timeouts mean your first stop should be the firewall.

A couple of quick tests can confirm your suspicions. A simple ping to a public domain like google.com will tell you if you have basic network reachability. If that works, try using telnet to connect to the specific hostname and port your application needs. This directly tests whether the firewall is allowing that particular connection through.

If you're seeing a generic "This site can't be reached" error, it could point to a few different root causes. We cover those scenarios in more detail in our guide on how to fix common connection errors: https://avenacloud.com/blog/this-site-cant-be-reached/. This initial recon helps you focus your efforts so you can stop guessing and start fixing the right component.

Investigating Your Proxy Server Configuration

When an application suddenly can't connect, a misconfigured proxy is often the culprit. It's one of those "hiding in plain sight" problems, tucked away in system environment variables or an obscure application menu. A proper check means digging deeper than the surface to see where your OS and apps are actually looking for proxy information.

Getting this wrong can silently route traffic to the wrong place or, worse, break authentication and render services completely useless. I’ve seen this happen countless times, especially during new deployments or environment migrations.

Locating Proxy Settings on Windows Systems

In the world of Windows, proxy settings can live in a few different places, which is a common source of confusion. Most people start with the system-wide settings in the graphical interface (GUI).

You can find this by heading to Settings > Network & Internet > Proxy. This screen will tell you if a proxy is being set up manually or through an automatic script. Simple enough.

But here’s the catch: many command-line tools and applications completely ignore the GUI settings. For those, you have to check the environment variables. A quick PowerShell command will show you what’s configured for your current session:

Get-Item -Path Env:http_proxy
Get-Item -Path Env:https_proxy

If these variables are set, any tool that respects them will try to use that proxy. A mismatch between what’s in the GUI and what’s set in these variables is a classic troubleshooting scenario.

Uncovering Proxy Configurations in Linux

Linux, by its nature, leans heavily on environment variables for system-wide settings like proxies. This is the standard way to tell command-line tools and most applications how to get to the internet.

You'll want to check for a few key variables:

• http_proxy: The go-to proxy for all HTTP traffic.
• https_proxy: The proxy specifically for secure HTTPS traffic.
• ftp_proxy: Less common these days, but it sets the proxy for FTP.
• no_proxy: A crucial one—it’s a list of hostnames or IPs that should bypass the proxy and be accessed directly.

To see if they’re set, just use the echo command in your terminal, like echo $http_proxy. If you get an empty response, the variable isn't set. These are usually defined in shell startup files like ~/.bashrc or globally in /etc/environment. If you want a deeper dive into how these different proxies work on a network level, check out our guide where proxies are explained in more detail.

Expert Tip: Don't forget that some tools have a mind of their own. Containerisation platforms like Docker or even specific programming language libraries can have their own internal proxy settings that will override whatever you've set for the system. When in doubt, always check the specific tool's documentation.

Handling Authenticating Proxies and PAC Files

Now, things can get a bit more complex. Many corporate networks use proxies that demand authentication before letting traffic through. If that’s your setup, the proxy URL needs to include your credentials, usually in a format like this: http://username:password@proxy.example.com:8080.

Another layer you might encounter is a Proxy Auto-Config (PAC) file. A PAC file is basically a set of rules written in JavaScript that tells your browser which proxy to use for any given URL. Instead of a simple proxy address, your system is pointed to the URL of this PAC file. To troubleshoot this, you’ll likely need to download the file itself and read the JavaScript to figure out exactly how it’s routing traffic for the destination you're trying to reach.

How to Inspect Firewall Rules and Logs

When you're chasing down a phantom connection issue, the firewall is one of the first places you should look. It’s a classic "it's not DNS" scenario—sometimes, it really is the firewall. A single, overly aggressive rule can silently drop legitimate traffic, leaving you stumped. The only way to get to the bottom of it is to stop guessing and start digging into the rule sets and logs.

Naturally, the tools and techniques you'll use depend on the operating system. On Linux, you'll be spending most of your time in the command line, which offers incredible speed and power. For Windows, you have the choice of a straightforward graphical interface or the scripting muscle of PowerShell to get a clear view of your server's security posture.

Reviewing Firewall Rules on Linux and Windows

On a Linux machine, your go-to tools are likely iptables, nftables, or the more approachable ufw. To get a quick dump of all active iptables rules, the command iptables -L -n -v is your best friend. It lists every rule and, crucially, includes packet and byte counters. These counters are a goldmine—if a rule that should be allowing traffic has a zero count, you've found a strong clue.

For a much deeper dive into firewall configuration, our guide on understanding iptables for advanced firewall configuration is a great resource.

Meanwhile, on Windows Server, most admins will start with the Windows Defender Firewall with Advanced Security console. It gives you a clean, organised view of all inbound and outbound rules. But when you need speed or want to automate checks, PowerShell is the way to go. The Get-NetFirewallRule cmdlet is incredibly useful for listing everything, and you can easily filter the output to find a specific rule that might be blocking a port or protocol.

Diving into Firewall Logs for Clues

Looking at the rules tells you what the firewall is supposed to do. The logs, however, tell you what it actually did. This is where the real detective work happens, as logs provide concrete evidence of dropped packets, complete with source and destination details, ports, and timestamps.

To really get a handle on network traffic and potential threats, a solid grasp of cybersecurity event logging is essential. Your firewall's activity is a critical piece of that puzzle.

Here’s where you can typically find these logs:

• Linux (iptables/ufw): Dropped packets are usually logged to the kernel ring buffer. You can fish them out with a command like dmesg | grep 'UFW BLOCK' or by tailing system log files in /var/log, like syslog or kern.log.
• Windows: Logging isn't on by default. You need to open the Windows Defender Firewall properties and enable logging for dropped packets. The output is usually sent to a file at %systemroot%system32LogFilesFirewallpfirewall.log.

Real-World Insight: I once spent hours on an intermittent connectivity issue for an application. The firewall rules seemed perfectly fine. It wasn't until I checked the logs that I saw a restrictive outbound policy was blocking the high-numbered, dynamic port the app used for return traffic. That detail was completely invisible in the rule set itself.

As networks grow more complex, so do the firewalls protecting them. The next-generation firewall market in the Middle East and Africa, for example, hit USD 322.1 million in 2022. This isn’t surprising. Modern firewalls with deep packet inspection and application-aware controls are becoming standard. When you're working with these advanced systems, the logs offer even richer context, often telling you the specific application or threat signature that caused a block, not just the packet details.

Using Advanced Tools to Isolate Traffic Blocks

When the usual suspects have been cleared but the problem persists, it’s time to dig a little deeper. Sometimes, a simple connectivity test isn't enough. You need to see the entire journey your network traffic is taking, hop by hop, to pinpoint exactly where things are going wrong.

This is where more advanced command-line tools come into play. They let you perform a much more surgical diagnosis, moving beyond a simple "can it connect?" to "where is the connection failing?"

With the right commands, you can effectively map out the path your data packets take. This is crucial for figuring out if the block is on your local machine, your network's edge firewall, or somewhere out on the public internet.

Tracing the Path with Traceroute and Tracert

Think of traceroute (on Linux/macOS) and tracert (on Windows) as your network's GPS. These utilities send out packets with a progressively increasing time-to-live (TTL), effectively asking each router along the path to identify itself. The result is a real-time map of the connection's route.

If the trace suddenly stops, you’ve found a huge clue. For instance, if the last router that responds is your company's main gateway, the firewall there is almost certainly the culprit. But if it gets past your network and dies somewhere in your ISP's infrastructure, you know the problem isn't on your end.

This is my go-to command for quickly distinguishing between internal and external network issues. If you can get a clean trace to a public site like google.com but not to your own application server, the problem is definitely localised within your own infrastructure.

A Note on Timeouts: You'll often see lines of asterisks (* * *) in a traceroute output. This means a timeout occurred at that hop. A few of these can be normal—some routers are configured not to respond to these probes for security reasons. However, if the trace ends with a consistent stream of timeouts, it's a classic sign that a firewall is silently dropping your traffic.

Viewing Active Connections with Netstat and ss

Before you spend hours chasing a phantom network issue, it's always a good idea to confirm your application is actually listening for connections. It's a simple check, but one that can save you a world of frustration. For this, netstat and ss are your best friends.

On modern Linux systems, ss has largely replaced the older netstat because it's significantly faster and more efficient. Running ss -tuln gives you a quick, clean list of all the TCP and UDP ports your server is listening on.

Here’s a quick breakdown of that command:

• ss: The command itself.
• -t: Shows TCP sockets.
• -u: Shows UDP sockets.
• -l: Filters the list to show only listening sockets.
• -n: Shows numerical addresses, which avoids slow DNS lookups.

If you expect your web server to be accepting connections on port 443, but you don't see that port in the ss -tuln output, the problem isn't the firewall. The service itself is either not running or is misconfigured.

For an even more granular look at what's happening on the wire, you might need to dive into packet analysis. You can learn more about how to use tcpdump for network packet analysis in our comprehensive guide. Mastering these tools is what separates guessing from knowing, allowing you to resolve even the most stubborn connectivity problems with confidence.

Checking Cloud and Provider-Side Firewalls

So, you've checked the local firewall and proxy settings on your server, but things still aren't working. Don't stop there. Your troubleshooting journey isn't over, because there's often another invisible layer of security that can be the real culprit: your cloud provider’s own network firewall.

These provider-side firewalls go by different names depending on the platform you're using. You'll commonly see them called security groups or network access control lists (ACLs). I like to think of them as a bouncer standing guard outside your building. The operating system firewall is the security guard inside your office. If the bouncer at the front door doesn't let you in, you'll never even get a chance to talk to the guard inside.

Navigating Cloud Security Controls

You'll almost always find these settings in your cloud provider's main dashboard or control panel, typically tucked away under a "Networking" or "Security" section. Unlike the potentially complex rule chains of iptables or Windows Firewall, these tend to be much simpler lists of inbound and outbound rules.

The logic is pretty straightforward:

• Inbound Rules: These dictate what traffic from the outside world is allowed to reach your server. A missing rule here is probably the most common reason a web server or database suddenly becomes unreachable.
• Outbound Rules: These control what connections your server is allowed to initiate. If your application needs to call an external API and can't, an overly restrictive outbound rule is often the cause.

When you're digging through these rules, pay very close attention to the source IP addresses. A classic mistake I see all the time is a rule that only allows traffic from a specific IP address—which breaks everything the moment that IP changes.

This shift towards provider-level security is a major trend. The Firewall as a Service (FWaaS) market in the Middle East and Africa, for instance, reached USD 197.7 million in 2023. This model centralises firewall management at the provider level, which can simplify things but also adds another layer to troubleshoot. You can discover more insights about the FWaaS market to understand these trends better.

Beyond Standard Firewall Rules

Cloud providers offer more than just simple port blocking. Many have advanced security services that can sometimes interfere with legitimate traffic, and one of the biggest ones is DDoS mitigation. These systems are built to automatically spot and block the malicious traffic patterns of a distributed denial-of-service attack.

The catch is, these automated systems aren't perfect. I’ve personally been involved in incidents where a legitimate, sudden traffic spike from a successful marketing campaign was flagged as an attack. The provider's DDoS protection kicked in and started blocking real users, causing a self-inflicted outage.

If you’ve checked the server's proxy, its local firewall, and the cloud security groups without finding a clear cause, this is your next stop. Understanding this provider-side layer is critical. It helps you figure out if the problem is something you can fix yourself, or if you need to escalate to the provider's support team with clear, specific information that points to a potential block on their end.

Frequently Asked Questions

When you're deep in troubleshooting mode, the same questions tend to pop up. Here are some answers to common queries I hear when diagnosing network connectivity, aimed at helping you get to the root of the problem faster.

How Can I Quickly Check My Public IP and Proxy Status?

One of the simplest and most reliable ways to see how the outside world views your server is by using a command-line tool like curl. Just open a terminal on your server and run curl ifconfig.me.

The command will return the public IP address that external services see. If that IP belongs to your proxy server and not the machine you're on, you've just confirmed that your traffic is being routed correctly. It’s a fantastic first-step sanity check.

What Is the Difference Between a Transparent and an Explicit Proxy?

The key difference really comes down to configuration and awareness. An explicit proxy is one you have to configure yourself, whether that’s in your operating system's network settings or within a specific application. You are explicitly telling the software, "send your traffic through this proxy."

A transparent proxy, on the other hand, works invisibly in the background. It intercepts network traffic at the gateway level without any setup required on your device. Your applications usually have no idea they're even using it, which is why this approach is so common in large corporate environments.

Can Firewall Rules Interfere with DNS Resolution?

They certainly can, and it’s a more common culprit than you might think. If a firewall rule is blocking outbound traffic on port 53 (for both UDP and TCP), it effectively cuts off your server's ability to communicate with DNS servers.

Without DNS, your server can't translate domain names into the IP addresses it needs to connect. You'll often see a "host not found" or similar error, even if you can ping external IP addresses directly. It’s a sneaky problem because it can make it seem like the internet is down when it's really just a name resolution issue.

As digital infrastructure grows, so does the focus on securing it. The network security firewall market in the Middle East and Africa, for instance, is expected to expand from USD 254.7 million in 2018 to USD 846.9 million by 2027. This trend underscores just how critical robust firewall and proxy management has become. You can learn more about these market findings here.
